Learning Glass mode is the default when the system starts. It's designed for writing on the illuminated glass board while facing the camera.

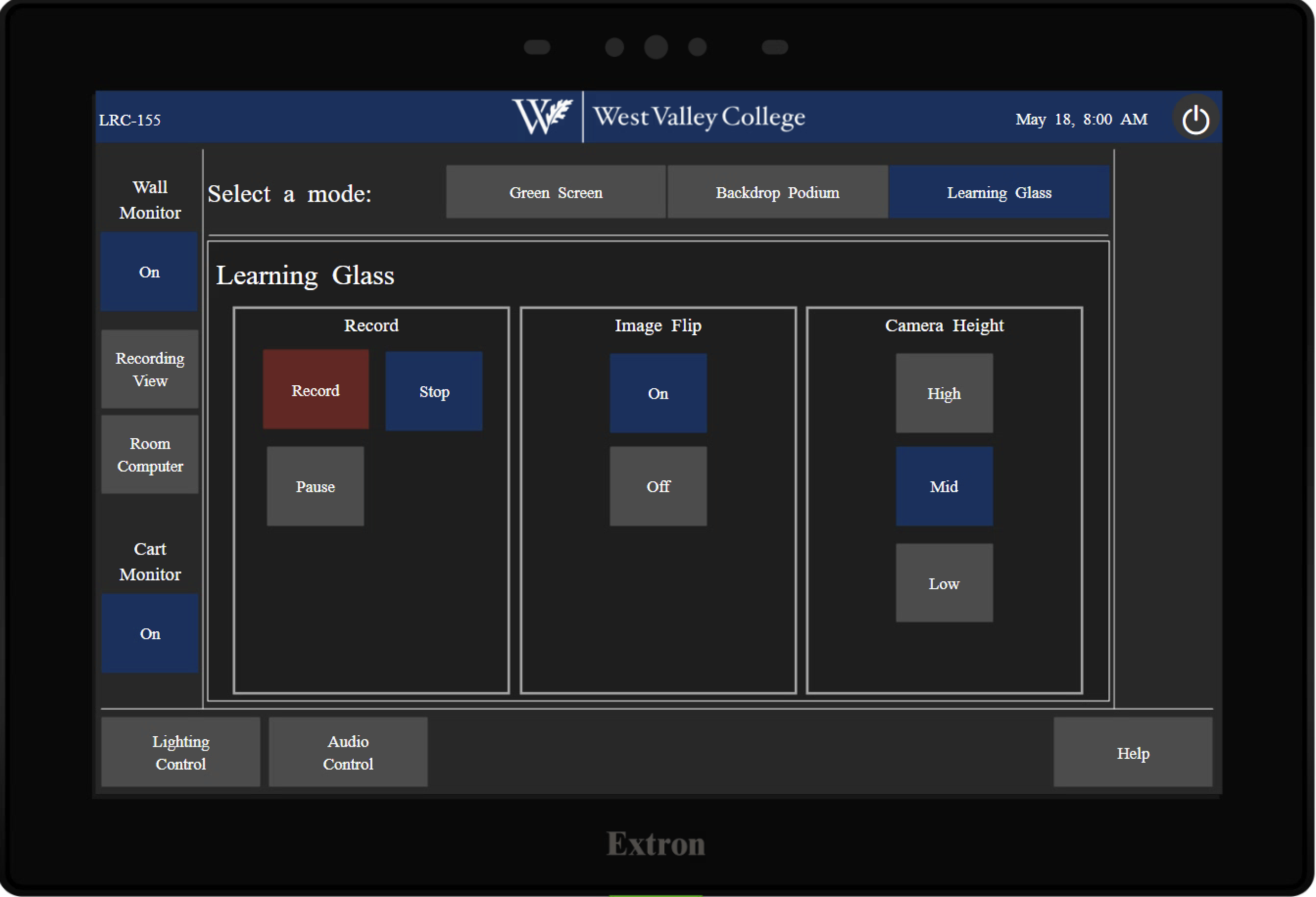

Learning Glass mode

Controls

  • Record / Stop / Pause — Start, end, or pause your recording.
  • Image Flip (On/Off) — Flips the video horizontally so your writing on the glass reads correctly to viewers. Leave this On for normal Learning Glass use.
  • Camera Height (High / Mid / Low) — Adjusts the camera to match your height and framing preference. Check the Recording View on a monitor to confirm your framing.

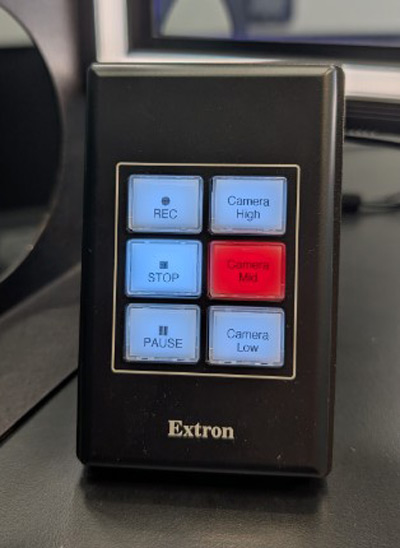

Learning Glass Keypad

Learning Glass keypad

A keypad mounted in a tabletop box at the Learning Glass lets you control the essentials without walking back to the touch panel:

  • RECORD / Stop / Pause — Same as the touch panel record controls. The Stop button illuminates while recording is active.
  • Cam Height 1 / 2 / 3 — Corresponds to High / Mid / Low camera positions. The currently selected height is lit.

For most Learning Glass sessions, the keypad is all you need once the system is on.
